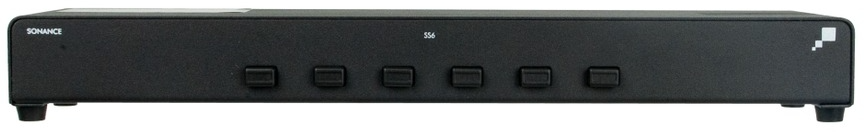

Sonance® SS6 Black 6 Zone Speaker Selector

Sonance

Model #:

91369

Sonance® SS6 Black 6 Zone Speaker Selector-0
Sonance® SS6 Black 6 Zone Speaker Selector-1

At a Glance

Product Dimensions 2.19"h x 16.88"w x 10.25"d

SS6 6 Zone Speaker Selector features a compact design with independent on/off switches and a manual protection slide switch. Custom button labels can be added for easy identification of each zone. Rear stereo push-type connectors accept up to 12-gauge wire, making it compatible with boating and RV applications.Read More

Available in Store Only

Get to know this product.

Product Overview

Product Overview

40 watts RMS per channel (circuit protection engaged, all speakers operating)

Dimensions with Feet (WxHxD): 11.25" x 2.0" x 7.0" (285.75mm x 50.8mm x 177.8mm)

Useful Documents
Installation Instruction
Specification Sheet
Specifications

General Specs

ColorBlack
Color/Finish NameBlack
Width (in.)16.88
Depth (in.)10.25
Height (in.)2.19
Manufacturer Warranty5 Year Parts & Labor

Technical Specifications

Power Rating:75 Watts RMS Maximum input per channel
Switch Type:12 Position light touch silent rotary switch "Make Before Break"
Terminal Typе:Toggle Quick Disconnect 20-14 AWG wire capacity
Frequency Response:20-20KHz+1dB
Speaker Impedance:8 per zone
Total Attenuation:-42 dB; full clockwise position is straight-through, full counter clockwise position is off
Attenuation by step:top 7 steps are -3dB per step, lowest 4 steps are -6dB per step
RMF (W x H x D):19" x 1 3/4" x 10 1/4" (483mm x 45mm x 260mm)
